Disc Lock
Product Details
| Art Description with specifications | Stainless steel grade | Thickness of stainless steel housing | The lock core materials | width（A） | opening(B) | The lock beam diameter（C） | The thickness of the lock body(D) | The lock beam hardness HRC | Thickness of copper key | Bit number | The key slot type | Number of marbles | weight |
| DISCUS PADLOCK 50mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 50mm | 201 | 1.0mm | copper | 50 -0.5mm | 20 +1.0mm | 7mm | 22 +0.5mm | Is greater than40 | 1.5mm | 4 | party | 4 | 97.5g |
| DISCUS PADLOCK 50mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 50mm | 304 | 1.0mm | copper | 50 -0.5mm | 20 +1.0mm | 7mm | 22 +0.5mm | Is greater than40 | 1.5mm | 4 | party | 4 | 97.5g |
| DISCUS PADLOCK 60mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 60mm | 201 | 1.1mm | copper | 60 +0.5mm | 21 +1.0mm | 8mm | 26 -0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 164g |
| DISCUS PADLOCK 60mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 60mm | 304 | 1.1mm | copper | 60 +0.5mm | 21 +1.0mm | 8mm | 26 -0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 164g |
| DISCUS PADLOCK 70mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 70mm | 201 | 1.0mm | copper | 70 -0.5mm | 22 +1.0mm | 9.5mm | 27 +0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 212g |
| DISCUS PADLOCK 70mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 70mm | 304 | 1.5mm | copper | 70 +0.5mm | 22.5 +1.0mm | 9.5mm | 28 ±0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 237.5g |
| DISCUS PADLOCK 80mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 80mm | 201 | 1.5mm | copper | 80 -0.5mm | 28 +1.0mm | 10.7mm | 29 +0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 322g |
| DISCUS PADLOCK 80mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 80mm | 304 | 1.5mm | copper | 80 -0.5mm | 28 +1.0mm | 10.7mm | 29 +0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 322g |
| DISCUS PADLOCK 90mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 90mm | 201 | 1.5mm | copper | 90 -1.0mm | 29 +1.0mm | 10.7mm | 29 +0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 385.5g |
| DISCUS PADLOCK 90mm: BODY: STAINLESS STEEL, FINISH – CHROME PLATED, CYLINDER MATERIAL: BRASS, SHACKLE: HARDENED WITH CHROME PLATED, KEY: 2 , 90mm | 304 | 1.5mm | copper | 90 -1.0mm | 29 +1.0mm | 10.7mm | 29 +0.5mm | Is greater than40 | 1.8mm | 5 | S | 5 | 385.5g |
1.Place of origin : Zhejiang,China(mainland)
2.lock body material : stainless-steel
3.keys : 2 iron keys
4.logo : can be customized
5.Packing : box packing/blister packing
6.Model : stainless-steel disc padlock
7.Application : boxes,door,vending machine,institution,school,or personal use,etc
8.Size :50mm 60mm 70mm 80mm 90mm
With a stainless steel body and exceptional design, combines corrosion resistance and high security. In the locked position the distinctive shape offers protection to the shackle from most forms of attack.
Features & Benefits:
Hardened Steel Shackle – Extra protection against hacksaw & cropping attacks
Double Bolted Locking Mechanism – Extra strength to resist torsion & pull attacks
Stainless Steel Body – Maximum resistance against corrosion
5 pin cylinder with anti-pick mushroom pins – Extra protection against picking
Paracentric keyway – Extra protection against manipulation
Drill resistant keyway – Protects the cylinder against drill attack
Specifications:
Body Width: 50MM 60MM 70MM 80MM 90MM
Shackle Diameter: 10mm
Vertical Shackle Clearance: 17mm
Box Contains
Kasp 160 Disk padlock
Two keys are supplied with this padlock

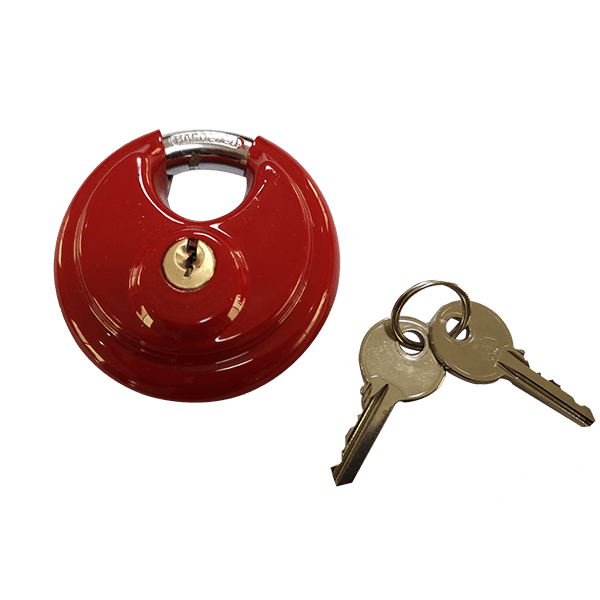

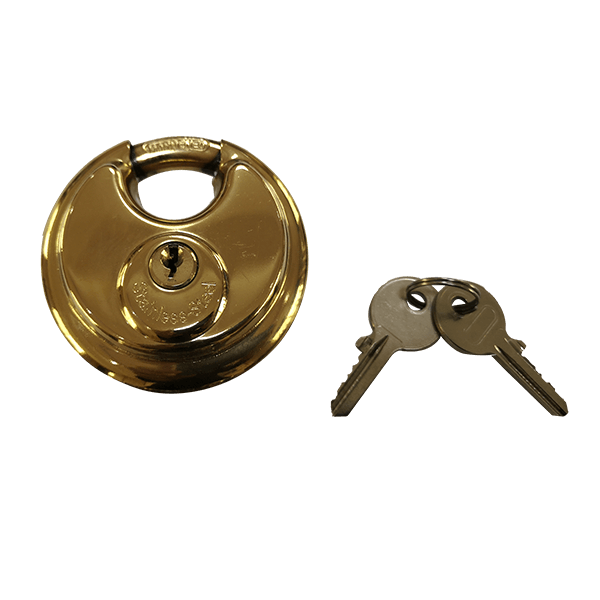

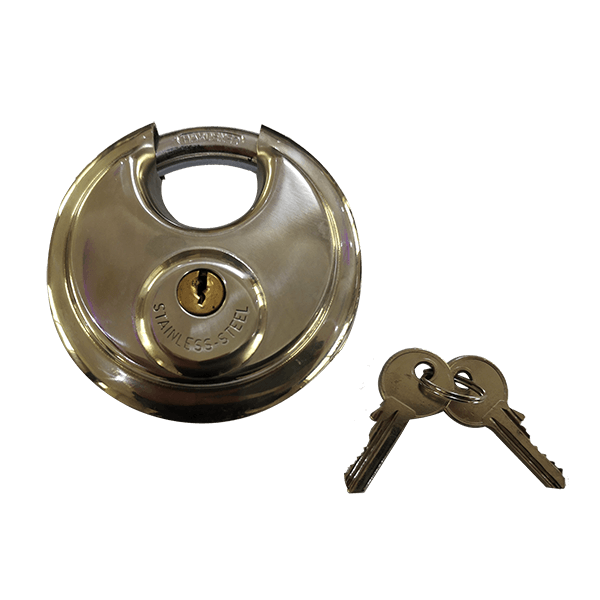

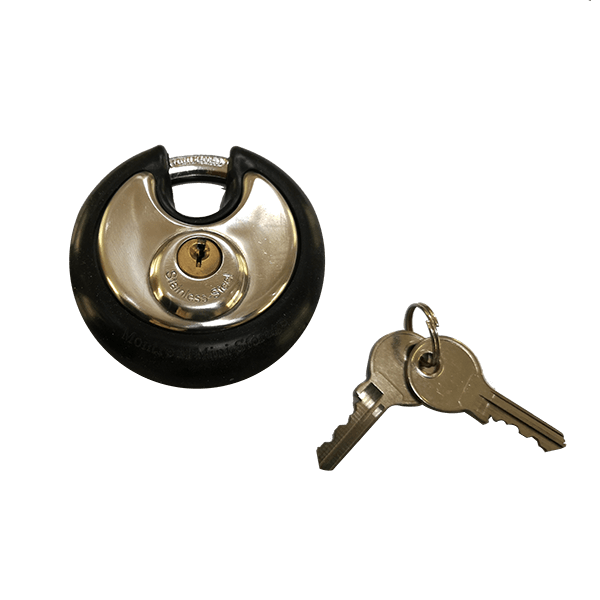

Product Details Picture
